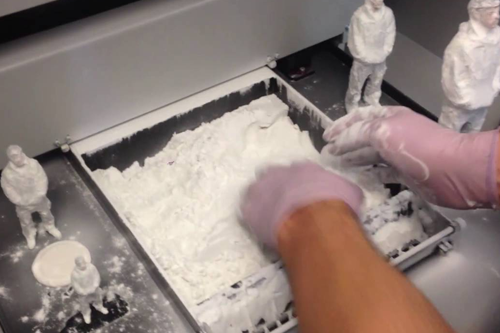

Color Jet Printing (CJP) builds objects layer by layer in a process called additive manufacturing. This 3D printing technology involves two major components – the core and the binder. The Core™ material is a fine gypsum-based or nylon-based powder. The binder is a super-glue like liquid mixed with the CMYK or CMY colors. The powder is spread in a thin layer over the build platform. After each layer is spread, color binder is selectively jetted from inkjet print heads solidifying and binding the particles together. Another layer of Core™ is spread over the previous layer and the process repeats to create a full-color, three-dimensional object.
The main achievements of professional 3D printers using gypsum are high speed of print construction and decent surface quality of the object. In prototyping, the technology is valued because of the rapid production of layouts that do not require additional processing or coloring. The appearance of the printed samples is almost indistinguishable from the original source, since the equipment accurately copies the geometry, hue, and texture of the product.
| Processes | Lead Time | Color | Tolerance | Price | Applications |
|---|---|---|---|---|---|
| 3D Printing | 2-4 Days based on size | All colors available | 500 Microns | Lowest in market | Multi color parts |
| Services Name | Max Size | Min Size | Min Thickness | Undercuts | Radii Depth |
|---|---|---|---|---|---|
| For 3D Printing | Max Part Size: 300 x 300 x 200 mm | Min Hole size : 5 mm | Min Wall Thickness: 5 mm | Min Feature Size : 5 mm | Recommended fillet & Chamfer angles : > 45 Deg |
Printing is done at room temperature by chemical reaction.
Strength of the parts are similar to clay pots.
About 6 million colors are possible in CJP printing.
Less than 30 mins for 1 inch parts & max 8 hours for 14 inch parts.
